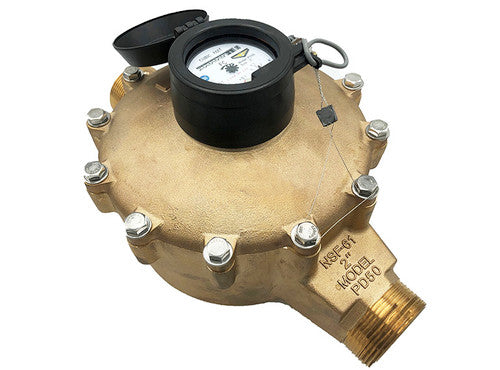

2" NTEP Approved Positive Displacement Water Meter

2" NTEP Approved Positive Displacement Water Meter

Click here for product data sheet

The NTEP approved ME-PD Series Positive Displacement Water Meters are constructed of lead free bronze and come standard with a reed switch type pulse output. This pulse output is a simple contact closure switch on a 2-wire cable that connects to a digital pulse counter display, wireless transceiver, or other electronics.

Measures in cubic feet.

Features:

Register

• All M&E meters come standard with pulse output
• All M&E meters are available in either gallon or cubic feet registration
• Magnetic drive, low-torque registration ensures accuracy
• Impact-resistant glass register resists scratching
• High-resolution, low-flow leak detection
• Bayonet-style register mount allows in-line serviceability
• Tamperproof seal pin deters theft
• Date of manufacture, size, and model stamped on dial face

Lead Free Main Case

• Made from lead free bronze
• NSF/ANSI/CAN 61 and 372 certified
• Includes 1/4”- 20 threaded boss for AMR/AMI pit installations
• Electrical grounding continuity

Measuring Chamber

• Oscillating piston measuring chamber
• Widest effective flow range for maximum revenue
• Polymer measuring chamber materials maximize long-term accuracy

Specifications

Meter Type: Positive Displacement (oscillating piston)
Connection Type: NPT Male Threaded (all sizes [Union Fittings Included])
Connection Type: 2-bolt Oval Flange (1 1/2" & 2")
Body Material: Brass (lead-free)
Internals: Polymer
Sizes: 1/2", 3/4", 1", 1 1/2", 2"
Units of Measurement: Gallons, Cubic Feet
Max. Pressure: 150 psi
Max. Temperature: 120˚F (49˚C)
Accuracy: +/- 1.5% of reading
Installation Orientation: Horizontal or Vertical
Functions: Totalizer Only
Pulse Output: Reed Switch
Lead Free Status: NSF Certified Lead Free
Shipping: Usually same day or next day
