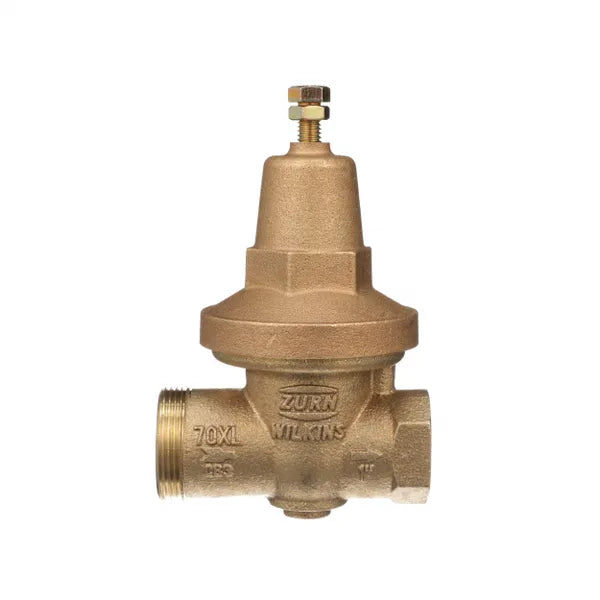

1" Zurn Wilkins 70XL Pressure Regulator - Single Union FNPT x FNPT, 1 in Pipe Size, Bronze, 25 psi to 75 psi

The 1" 70XL Pressure Reducing Valve is a contractor favorite, providing a variety of residential and commercial customers with extreme stability, ruggedness, and ease of repair for more than 40 years. The 70XL features single union or double union connections, a cast bronze body and bell with stainless steel components, a 20-mesh strainer screen, and a unitized replaceable cartridge which reduces labor costs and time for required cleaning and maintenance. By installing the 70XL, you will conserve water and energy while protecting your water system, complying with plumbing codes, and ensuring ultimate safety.

FNPT x FNPT, 1 in Pipe Size, Bronze, 25 psi to 75 psi
For Media: Water
Connections: FNPT x FNPT
Union Type: Single
Application: Commericial or Residential
Inlet Connection Size: 1"
Outlet Connection Size: 1"
Body Material: Bronze
Seat Material: Stainless Steel
Coating/Lining: NSF Listed Fusion Bonded Epoxy Lining and Coating
Pressure Adjustment Range: 25 psi to 75 psi
Operating Pressure Range: 25 psi to 300 psi
Max. Operating Temperature: 140 °F
Factory Set Pressure: 50 psi
Max. Continuous Flow Rate: 42.3 gpm
Port Design: Full Port
Overall Width: 3-5/16"
Overall Height: 6-1/2"
Includes Strainer: Strainer Included
Low-Lead Compliance: Low-Lead Compliant
NSF Certifications for Food and Drinking Water: NSF 61
